Terratomere (Azure, ex Rathole)

The server codenamed Terratomere runs the loadbalancer, reverse proxy and for al the web apps, as well as Coolify (A docker orchestrator). It also runs a tunnel server which exposes services from Astralescence to the internet.

Specs

Rathole is a VPS on Azure. Specs ar the following:

Networking setup

Public address

Azure VM has an assigned static public ip and DNS name:

The following ports are opened on Rathole:

Documented Incident: On 16 November 2025 Microsoft accidentally dealocatted the statically assigned ip address, this in turn causing a major outage of all services.

Traefik (via Coolify)

Azure/Rathole/Traefik service servers as a L7 load balancer.

All traffic is redirected towards Astralescence except some applications which are hosted on Excalibur. The config can be found at /data/coolify/proxy/dynamic/loadbalancer-alacrity-landing.yaml on Rathole. The current loadbalancing is being phased out and the only service hosted on excalibur is Monoclubotosani NGO's website.

Rathole Tunnel

Rathole is the name of the Tunnel Service. It was used to make the connection of the servers (as Astralescence) network-agnostic. Meaning that Astralescence did not require router port forwarding to expose its services to the internet. This is no longer needed for HTTP/HTTPS/SSH/FPT, as Cloudflare Tunnels support exposing applications using these protocols using Public Hostnames. However, for arbitrary TCP/UDP (such as needed for running a Minecraft server) a full tunnel is required.

Current Rathole Config:
Servers Connection

[server]
bind_addr = "0.0.0.0:2333" # `2333` specifies the port that rathole listens for>
default_token = "redacted"

[server.transport]
type= "noise"

[server.transport.noise]
local_private_key = "redacted"

[server.services.astralescence]
bind_addr = "10.0.1.1:2201"

[server.services.http-astralescence-main]
bind_addr = "10.0.1.1:8088"

[server.services.excalibur]
bind_addr = "10.0.1.1:2203"

[server.services.http-excalibur-main]
bind_addr = "10.0.1.1:8083"

[server.services.minecraft]
bind_addr = "0.0.0.0:25565"

[server.services.beammptcp]
bind_addr = "0.0.0.0:30814"
type = "tcp"

[server.services.beammpudp]
bind_addr = "0.0.0.0:30814"
type = "udp"

/etc/hosts file

Because Coolify does not like sharing ip addresses between workers and since all workers are pointing to the same local ip address via Rathole the following /etc/hosts was created:

10.0.1.1 trueastralescence
10.0.1.1 excalibur

Astralesence

Astralescence is (was) the primary build and hosting server for all the services. It is a self-deployed Dell 1u Server.

Specs

Networking setup

Rathole

Base Setup:

[client]
remote_addr = "redacted:2333"
default_token = "redacted"

[client.transport]
type="noise"

[client.transport.noise]
remote_public_key= "redacted"

Client to Server traffic is encrypted using a Noise protocol. This is enough for any kind of traffic between the two servers.

Coolify deployemnt configuration requires a ssh port for orchestration and a http/s port open for basic Traefik web serving.

[client.services.astralescence]
local_addr = "0.0.0.0:22"

[client.services.http-astralescence-main]
local_addr = "0.0.0.0:443"

SSL termination is done at the Workers, not at the load balancer, as each coolify worker runs a Traefik instance as a reverse proxy.This is being phased out.

Other forwarded ports:

[client.services.minecraft]
local_addr = "0.0.0.0:25565"

[client.services.beammptcp]
local_addr = "0.0.0.0:30814"
type = "tcp"

[client.services.beammpudp]
local_addr = "0.0.0.0:30814"
type = "udp"

Cloudflared & tailscale

This server is exposed via two other services:

Docker networks and all deployed services will be documented in a separate file.

TODO Sainenco
Add more details about Astralesence.
Overview of hardware and any special network requirements together with it.
If we plan to decommission and move to the lab, we need all the details about it to ensure a smooth migration with little downtime.
TODO Alex Lucaci: Decomission minecraft server on Khazadum and make space for some build servers there.

Excalibur

Excalibur is another Azure VM deployed for Monoclu Botosani NGO and Memorialul Ipotesti Public Institution.

It currently hosts https://monoclubotosani.com and https://eminescuipotesti.com

Specs

Excalibur is a VPS on Azure. Specs ar the following:

Windblade

Excalibur Google Cloud VPS deployed for hosting exclusively the uptime monitor https://uptime.alacrity.ro the alias https://status.alacrity.ro

Specs

Windblade is a VPS on Google Cloud. Specs ar the following:

Networking setup

Cloudflared

This server's services are exposed via a Cloudflared tunnel.

Lab Network

The Lab infrastructure is built on a modified Router-on-a-stick design with WAN connections at one of the vlans.
Separate network segments are provided for isolation of devices with different roles and access levels. A firewall running on the central gateway controls access.

Architecture

The central router (RLab) acts as the single L3 network equipment. It supported by 3 switches on trunk ports, whose role is to provide access ports to end devices. Internet uplink L2 connectivity is tunneled to the router by SVlad trough a isolated vlan.

Switches are:

Two access points (Mikrotik cAP AX) are placed in each of the rooms. RLab router runs CAPsMAN and controls the radios of these AP's. All vlan's use local forwarding (traffic gets processed on CAP) except the VJail network, which uses CAPsMAN traffic processing to be able to apply filtering rules centrally.

Core Rack

The core rack is located in the entrace hallway and contains the heart of the network: RLab, SCore and a few servers.

Already existing wiring in the building is used to distribute trunk ports to other sections of the house, including Henri and Vlad. The reception room and classroom are connected using only access pors on the RLab router itself.

The SCore switch has a display where charts of the traffic on Ether1 ports can be observed. The last 5 ports are reserved for future use with IP cameras and NVR.

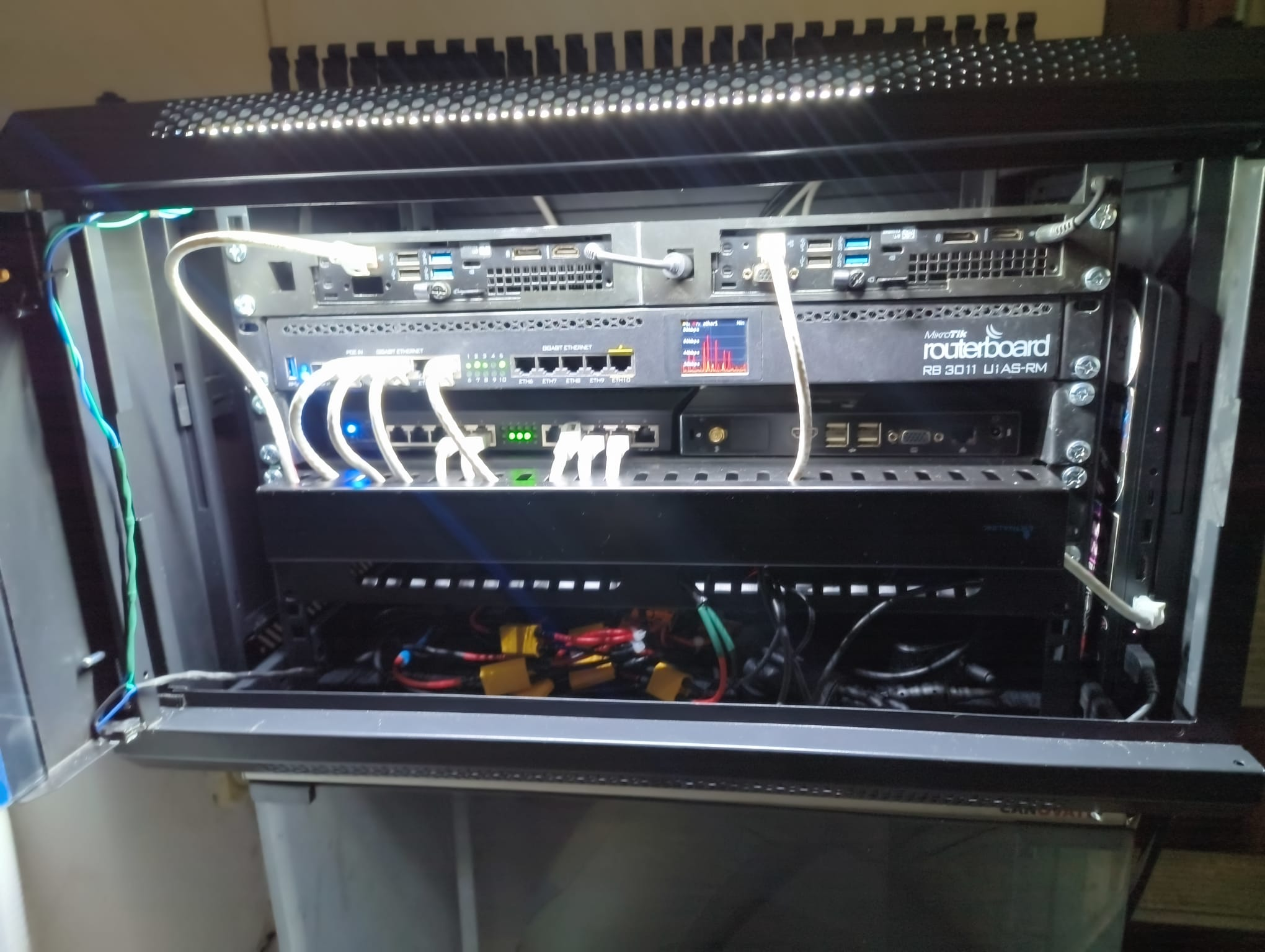

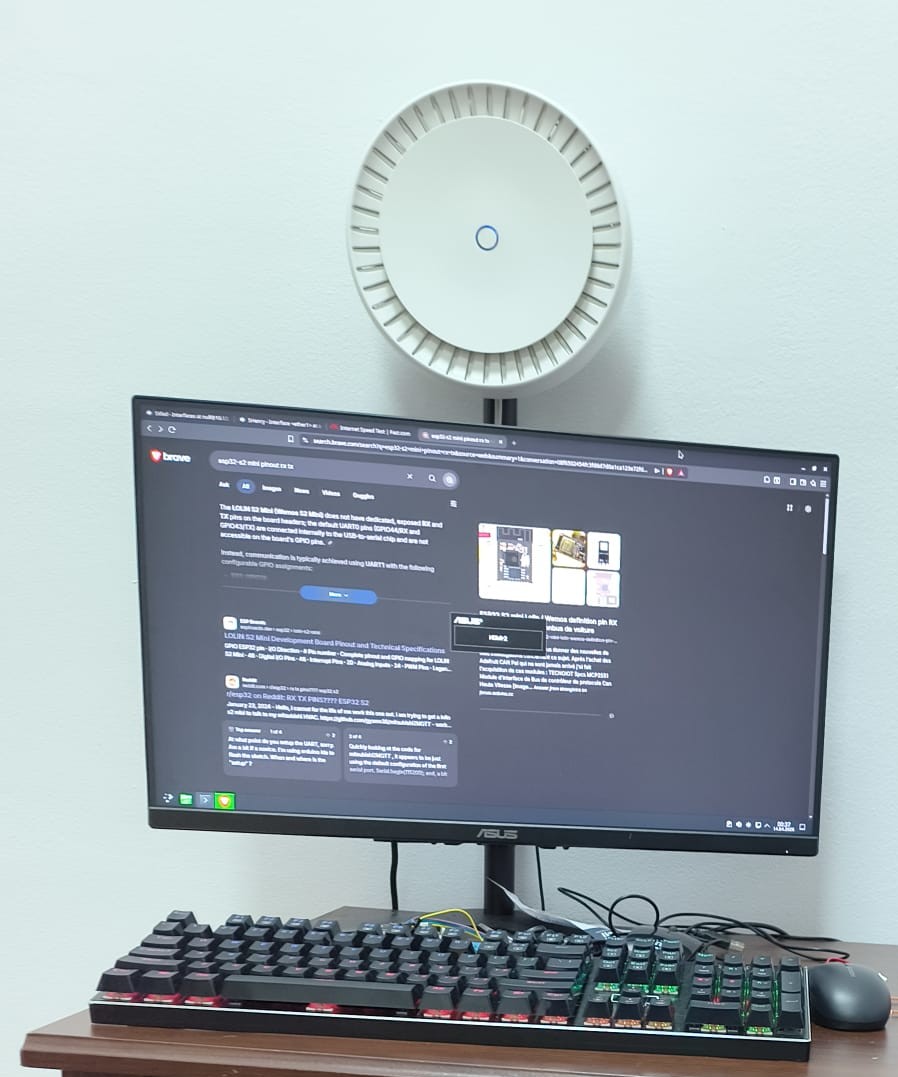

Core Rack Henri AP temporary mouting
whatsapp_image_2026-04-14_at_12.49.40_am.png whatsapp_image_2026-04-14_at_12.49.40_am.jpeg

Servers

Servers should normally live in the core rack and the VServers vlan, except cases where they are needed in other physical locations and/or network configurations.

Vlans

All bridges will be called bridge. They will have VLAN filtering turned on.

VID Interface Name Network Devices Notes WiFi
100 VMgmt 10.12.1.1 Switches, Routers No!
200 VClock 10.12.2.1 Clockworks printers and regular stuff ClockWorks
300 VAlacrity 10.12.3.1 Alacriy regular devices Alacrity
400 VIoT 10.12.4.1 HassOS, cameras, Boron. LabIoT (hidden)
500 VGuest 10.12.5.1 NO access to othe vlans LabGuest
501 VJail 10.12.51.1 Bambu's and other chatty shit NO access between devices, NO access to other vlans LabIso
101 VWanConsumer Whatever digi gives Primary Uplink Internet Uplink PPPoE (Digi) No?!
102 Reserved Provider-allocated Future Uplink Reserved No?!
103 Reserved Provider-allocated Future Uplink Reserved No?!
104 Reserved - Reserved Reserved TBD
105 Reserved - Reserved Reserved TBD
106 Servers 10.12.16.1 Eros, Pallas, Ceres Servers and stuff No!

Lab network layout

Cold start

The network and all associated devices are able to boot successfully after a complete lab power cut. The test was performed successfully on 20th April 2026.

Laboratory workstations are configured in BIOS to not power on after a power outage.
