Soldering Skillbuilder

The Soldering Skillbuilder board is designed to help you learn to solder a few components on a bare PCB.

screenshot_20260724_143527-1.png screenshot_20260724_143612.png

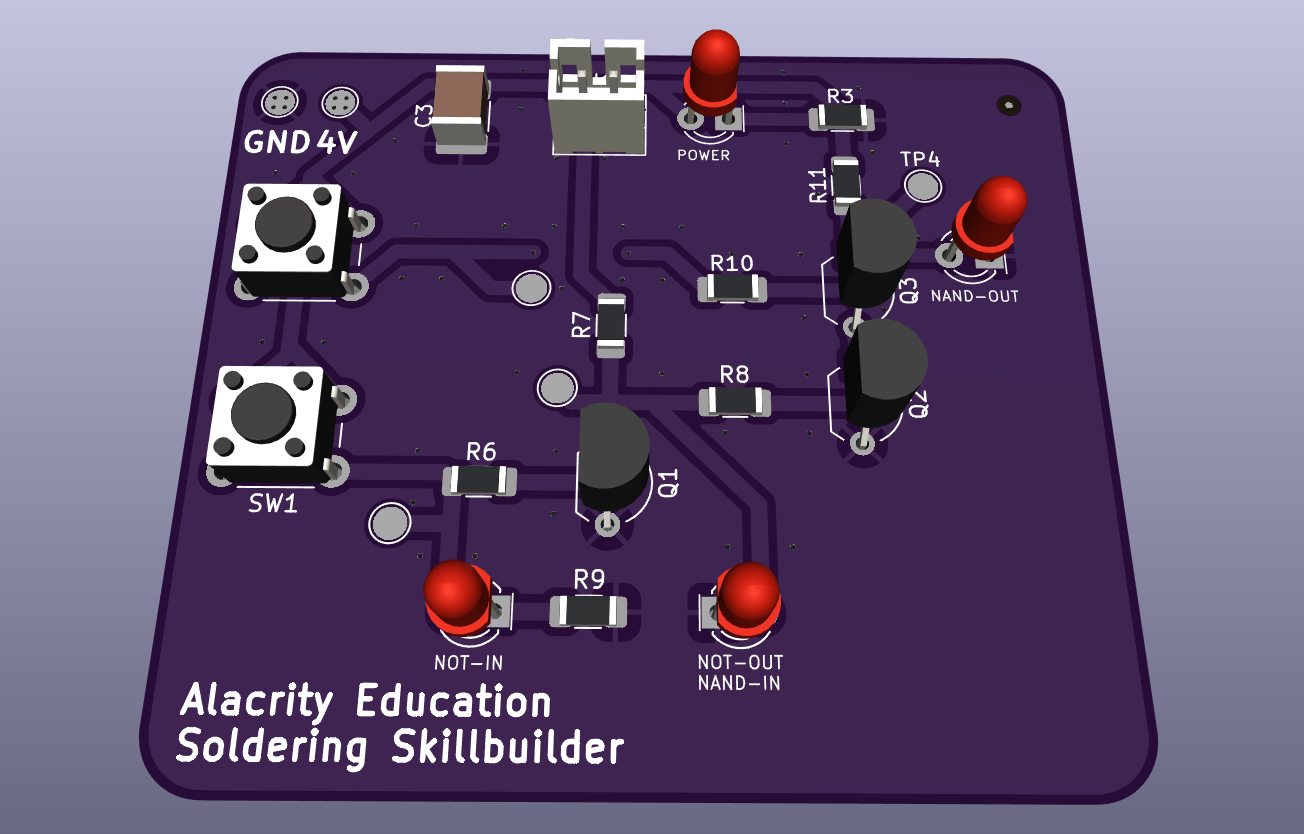

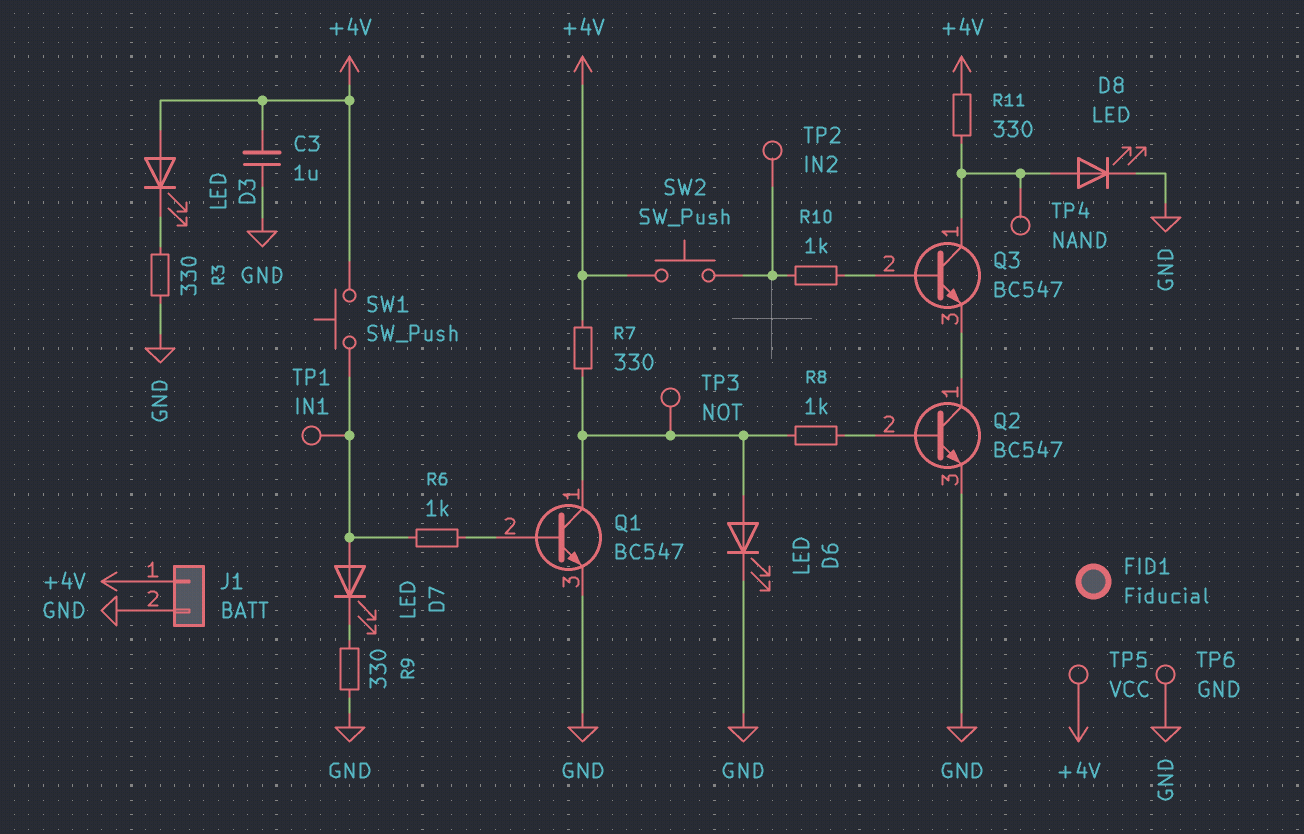

Schematic 3D View of the board

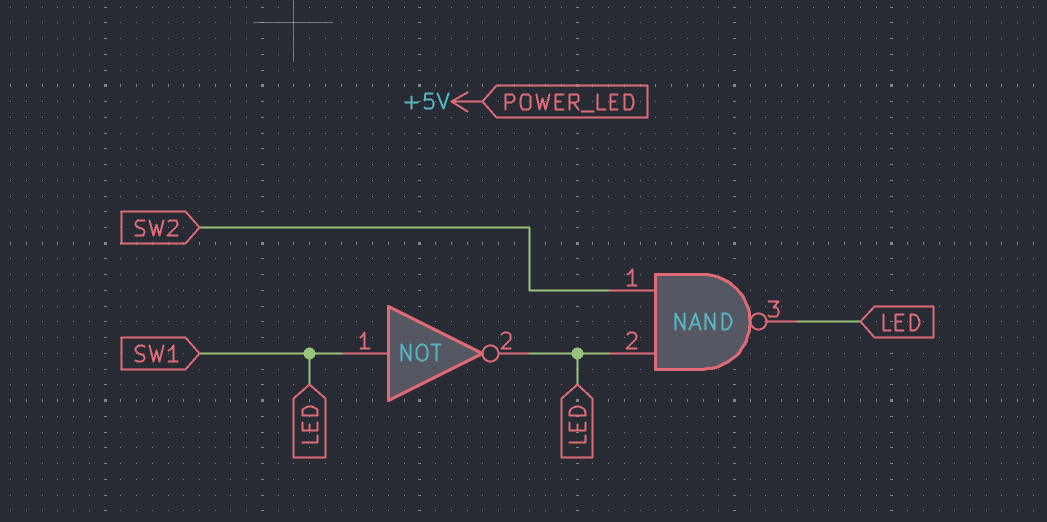

Logic Schematic

Assembly Instructions

Resistors

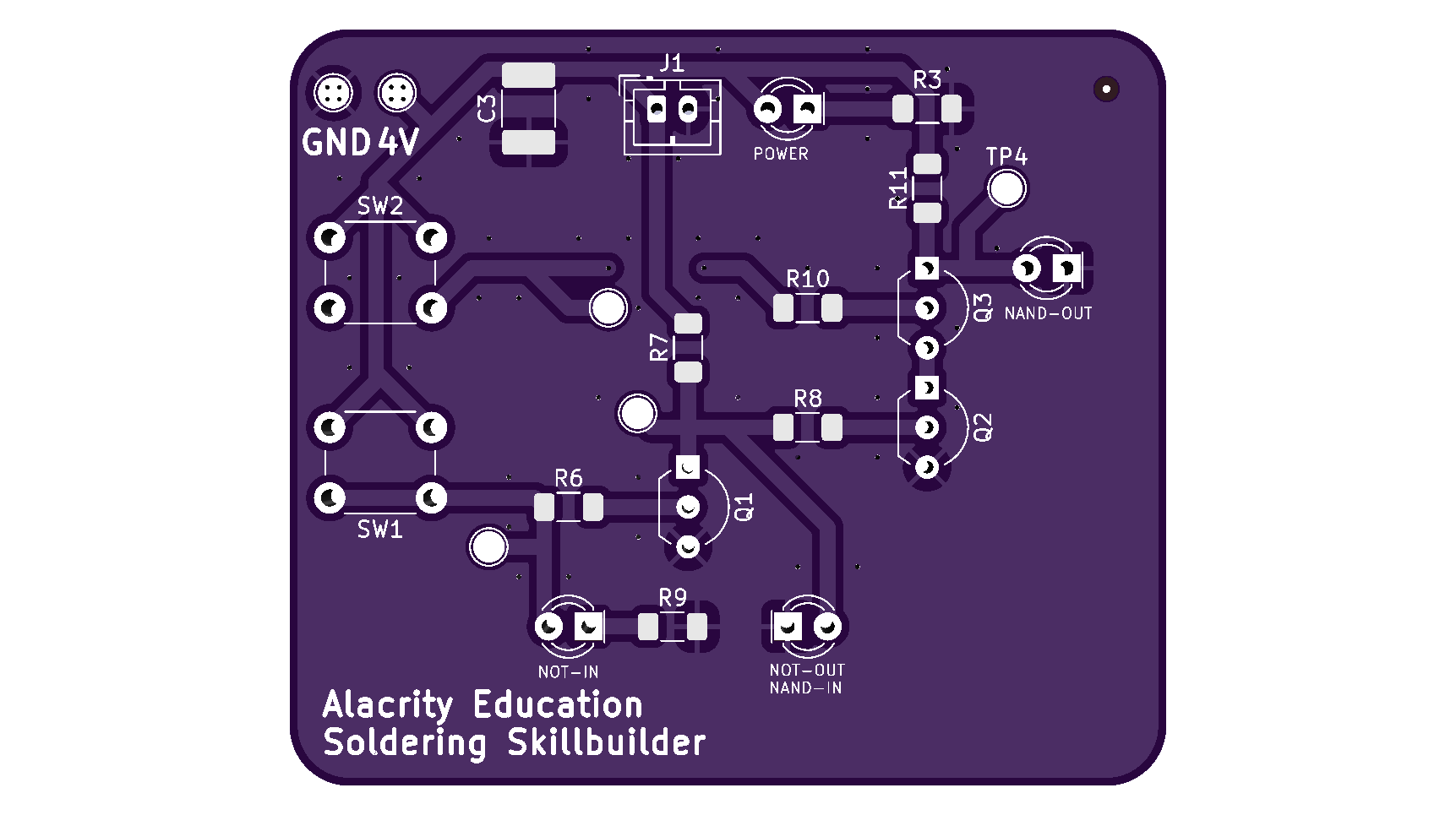

Step 0: Bare PCB

330 Ω Resistor (total 4 resistors)

Step 1: R3 R7 R9 R11

1 kΩ Resistor (total 3 resistors)

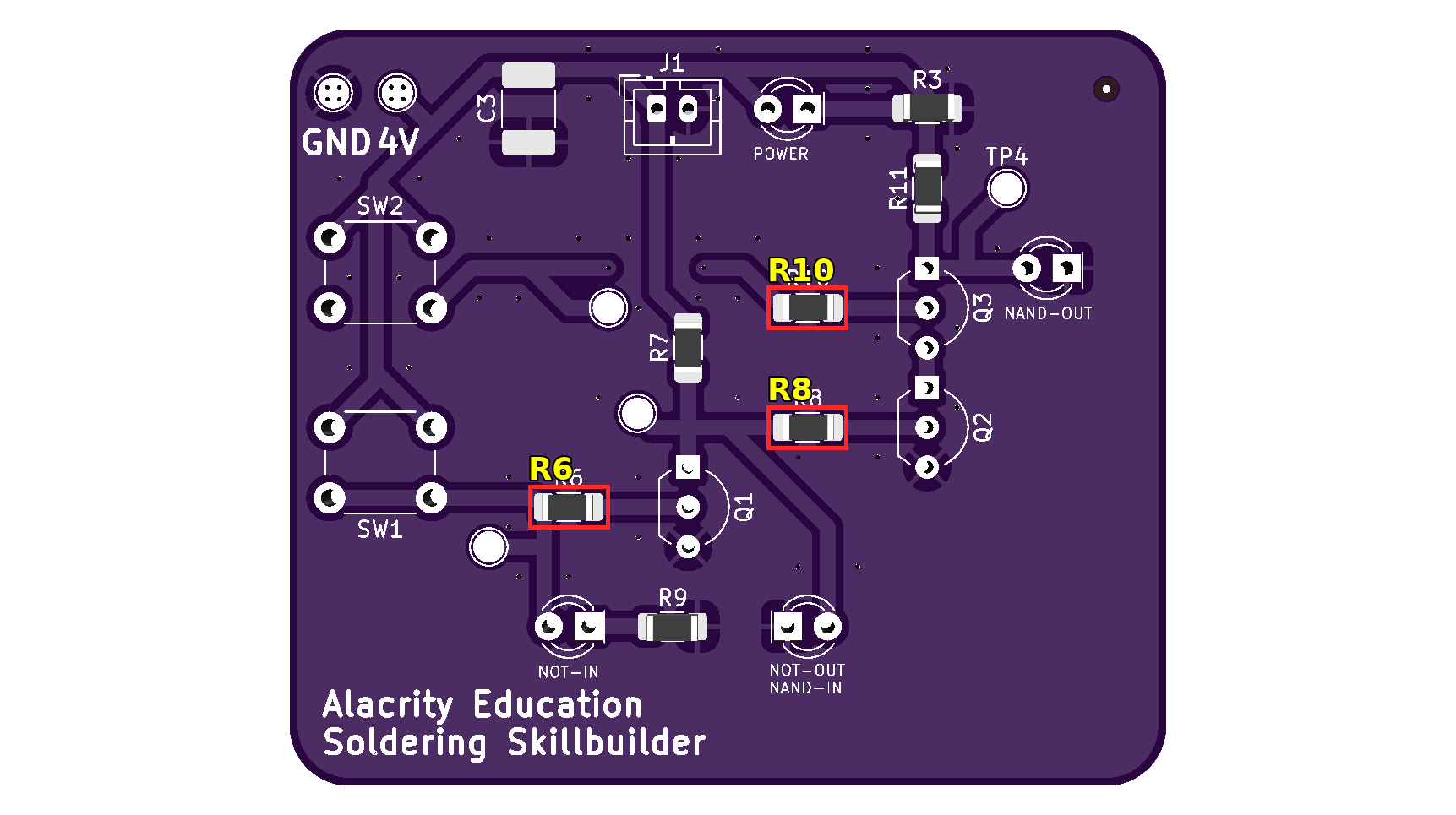

Step 2: R6 R8 R10

1 µF Capacitor (total 1 capacitor)

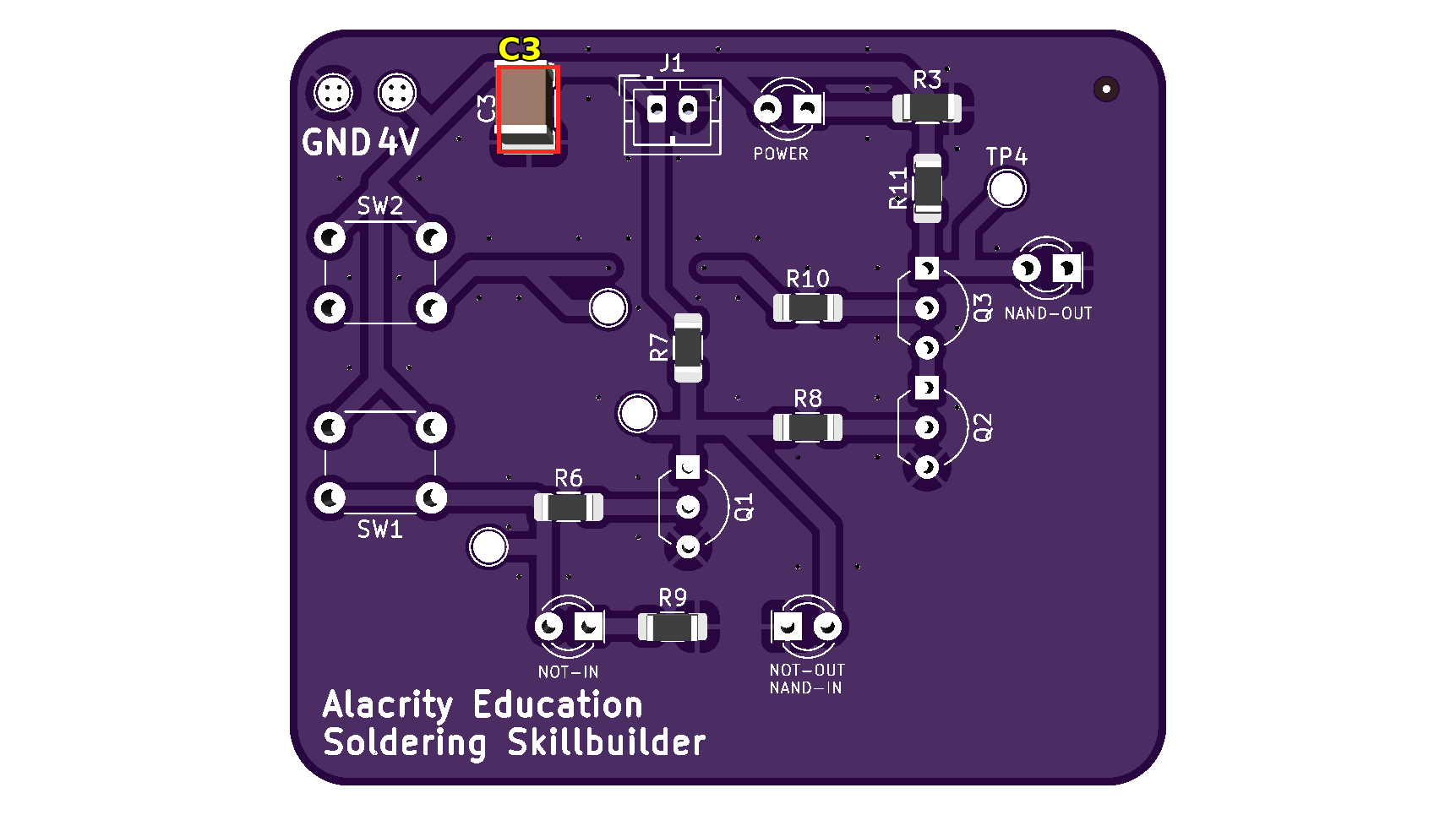

Step 3: C3

BC547 Transistor (total 3 transistors)

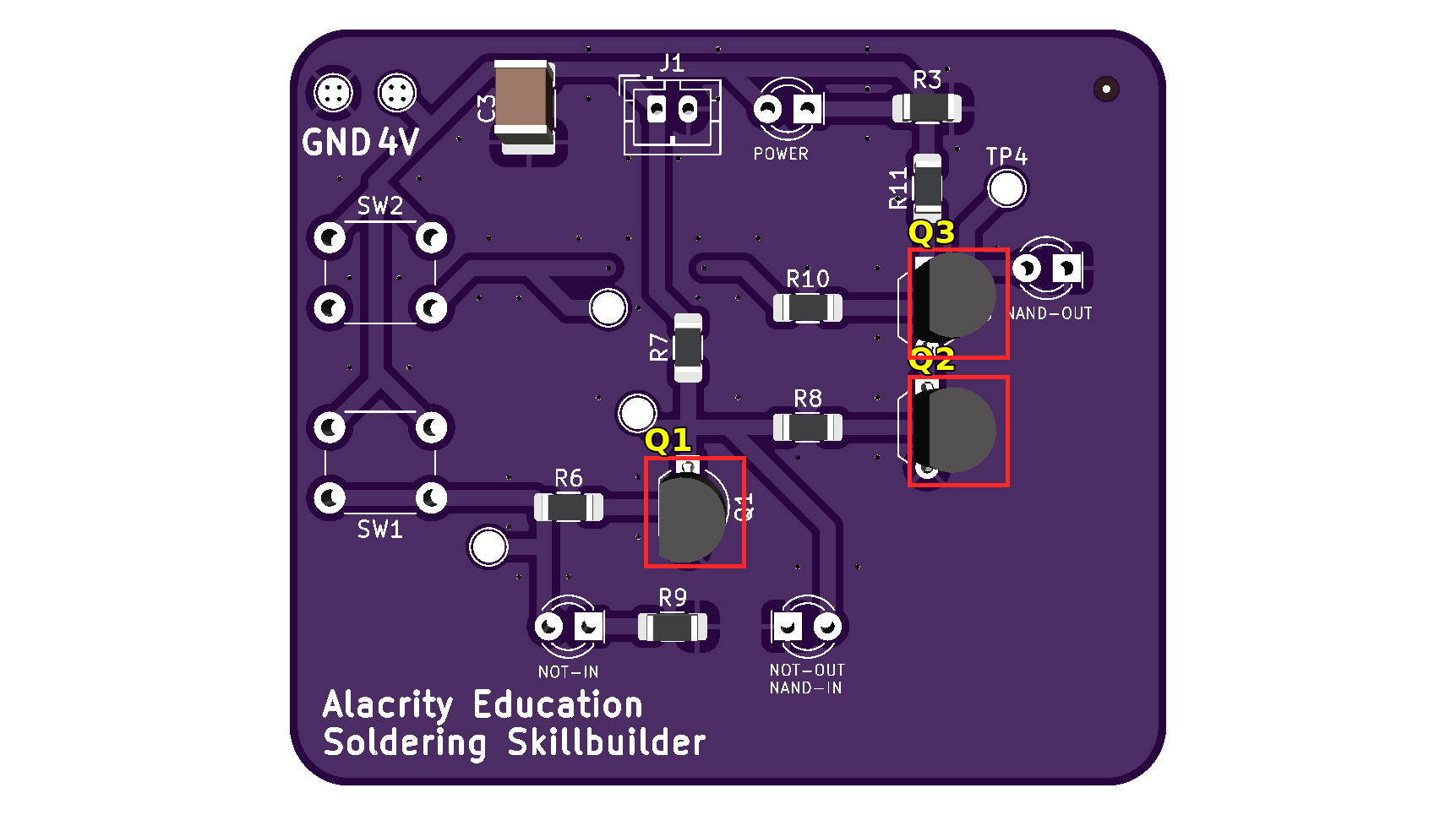

Step 4: Q1 Q2 Q3

LED (total 4 LEDs)

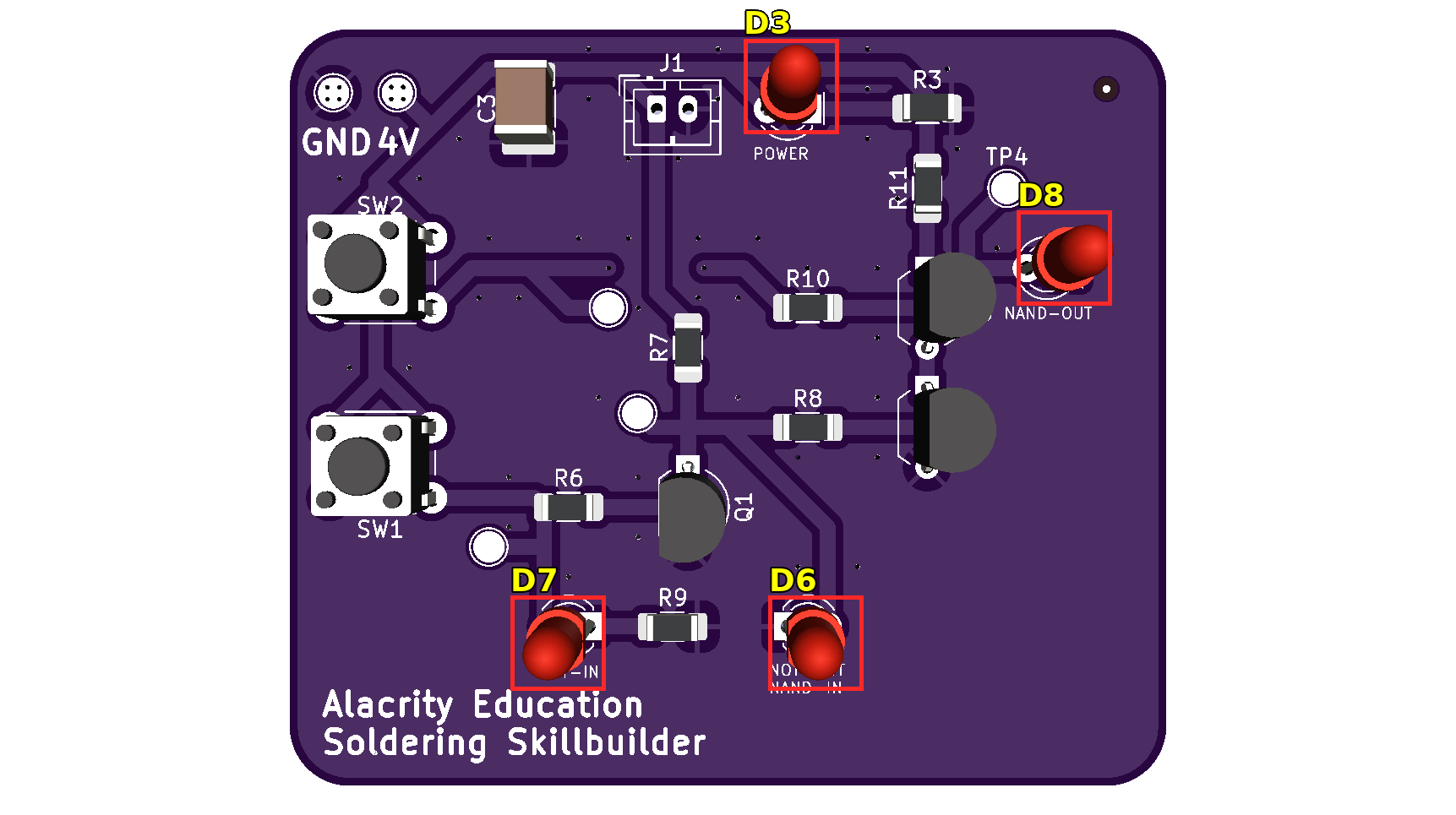

Step 6: D3 D6 D7 D8

Tactile Button (total 2 buttons)

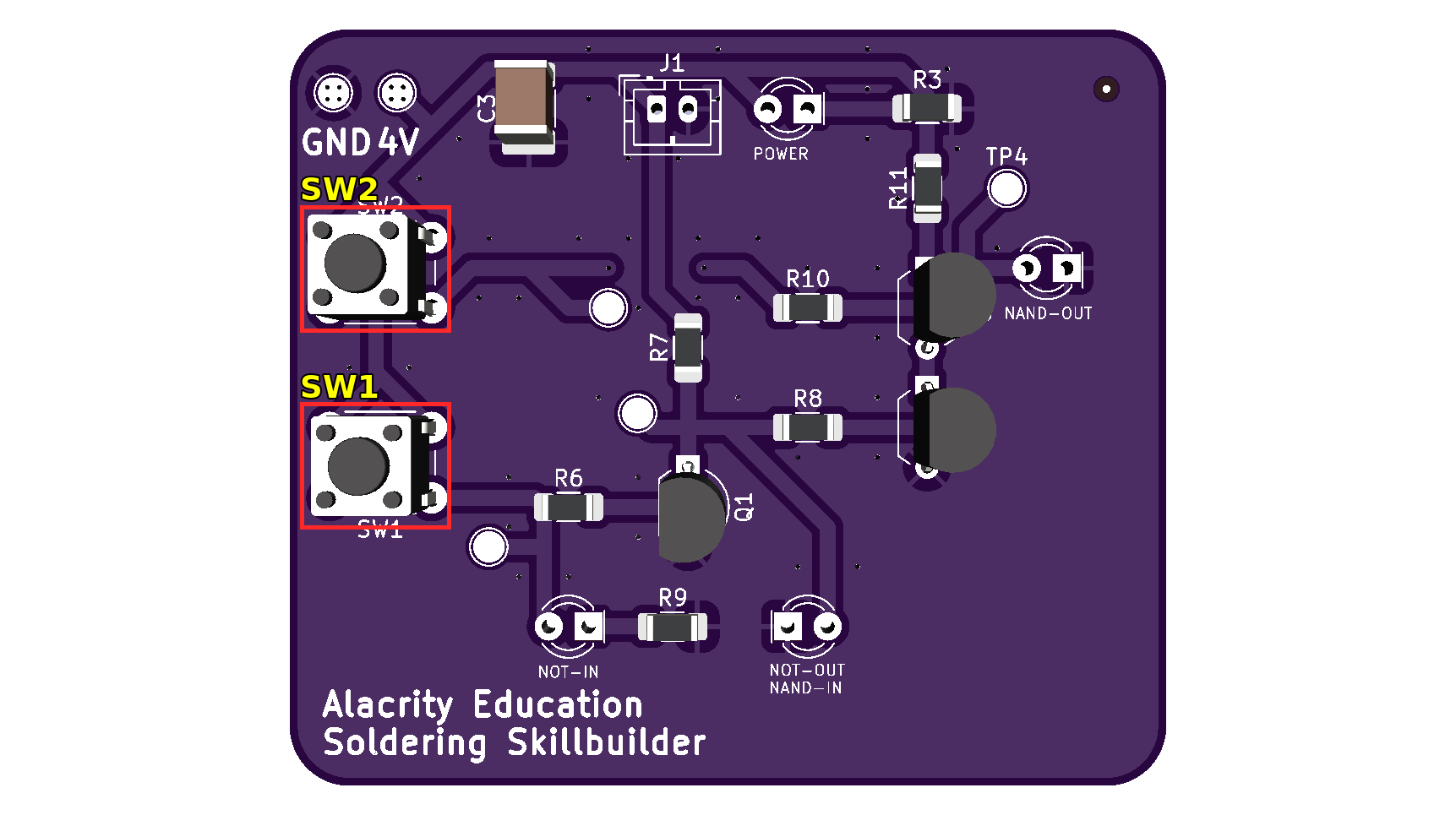

Step 5: SW1 SW2

JST Power Connector (total 1 connector)

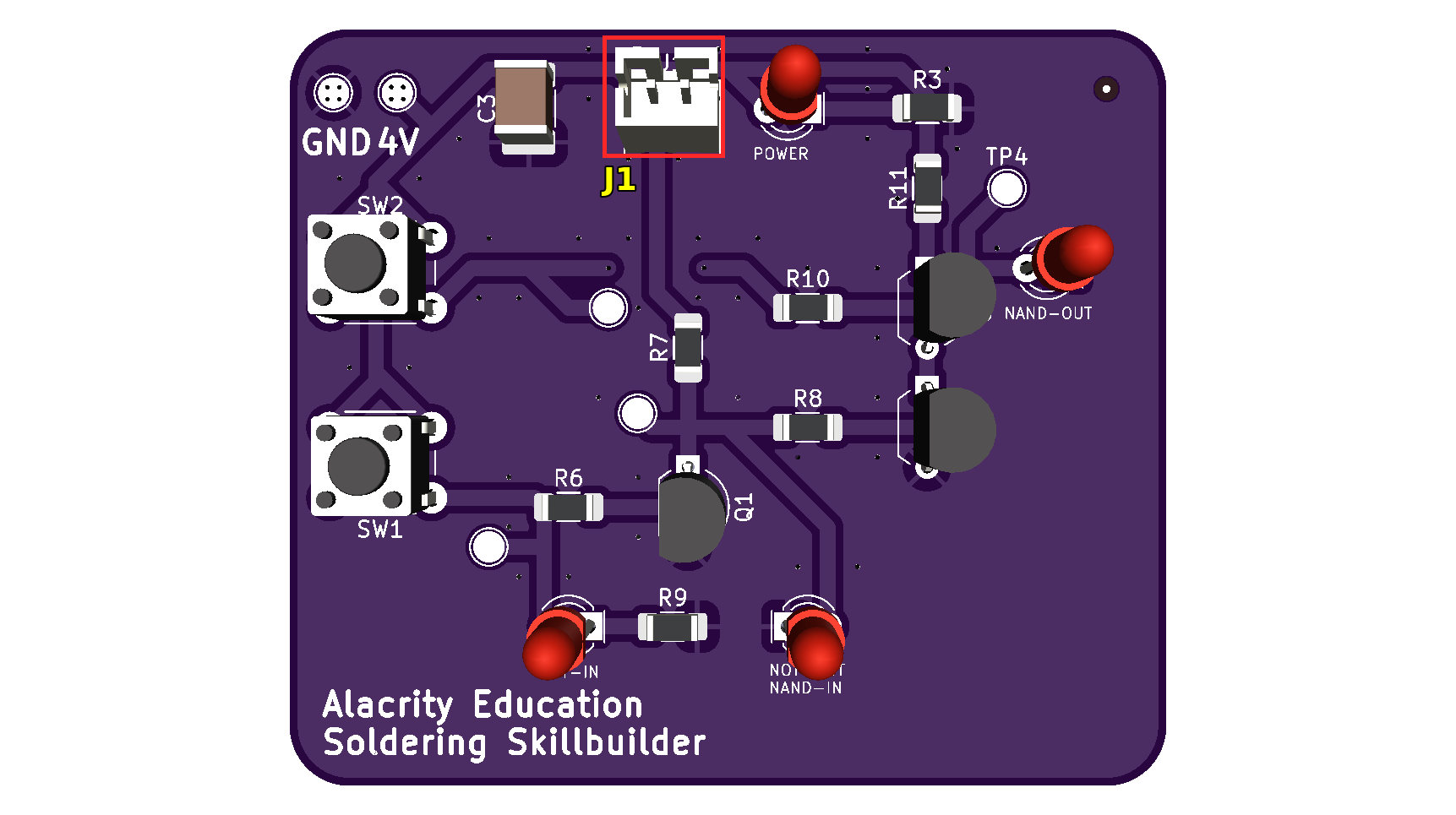

Step 7: J1
